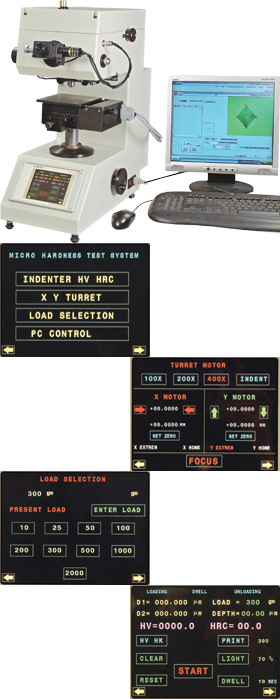

Fully Automatic Micro- hardness tester
First time in India
Load range – 10 gms to 1000gms ( optional 2 gms to 3000 gms)
Duel time 5 – 99 sec
Automatic loading and releasing
Microscope Magnification – 100 x , 400 x
Measurement of indentation – Digital Fillar eyepiece
Max. measurement length – 175 microns
Max. Height of specimen – 65 mm
Max. Depth of specimen – 85 mm
LCD touch screen
Auto – load selection
Auto motorized x-y motion
Motorized Z motion
Manual over riding option to all the automations for any in- service failure
( This is first time in world )
Computer interface for single as well multiple indentation measurement and direct plotting the hardness graph / profile .
Programming the profile in straight and also zig-zag way.
Power Supply - AC 230 V
Up gradation of any existing microhardness tester to an automatic version.
Automatic module can be retrofitted to any existing tester with features like Automatic motorized stage, Computerization, Automatic hardness & profile measurement with motorized Z motion.
